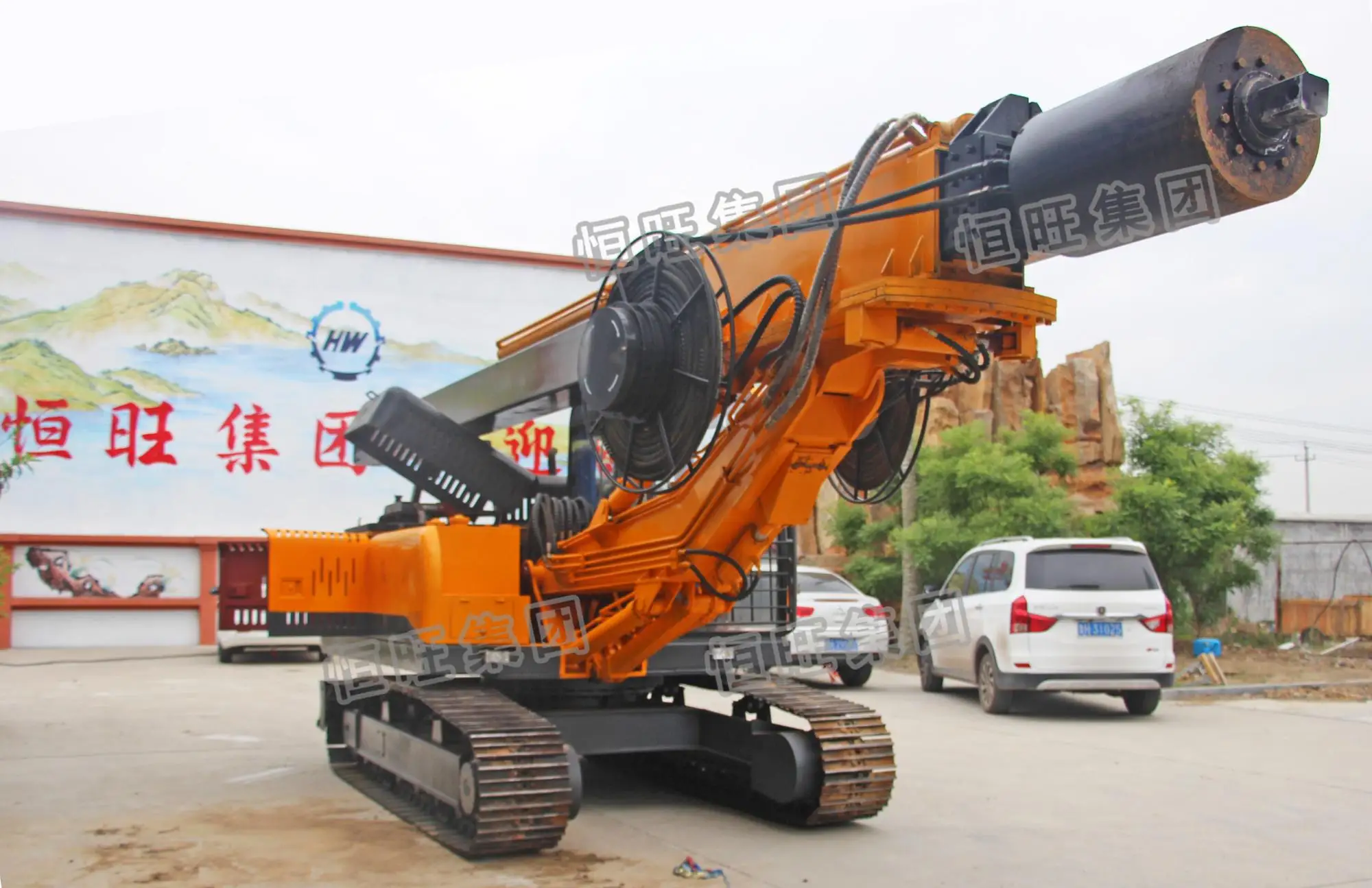

High truck type full hydraulic rotary pile rig/rotary drill rig for saleHigh truck type full hydraulic rotary pile rig/rotary dr

FOB Reference Price:Get Latest Price
$23,000.00 - $40,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Piling Speed(m/min):
2m/min
Efficiency:
2000mm/min
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
HW-22
Weight:
13000(16000)
Certification:
ISO9001
Dimension(L*W*H):
7700*2300*3100
Name:
Piling Machine
Application:
Hole Drilling
Type:
Hydrualic
Drill diameter:
480-1500mm
Usage:
Hydraulic Rotary Drilling Rig
Item:
Hydraulic Rock Drilling Machine
Drilling depth:
23M
Color:
Yellow
Hydraulic hammer model:
YC360
Power:
110KW
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
container

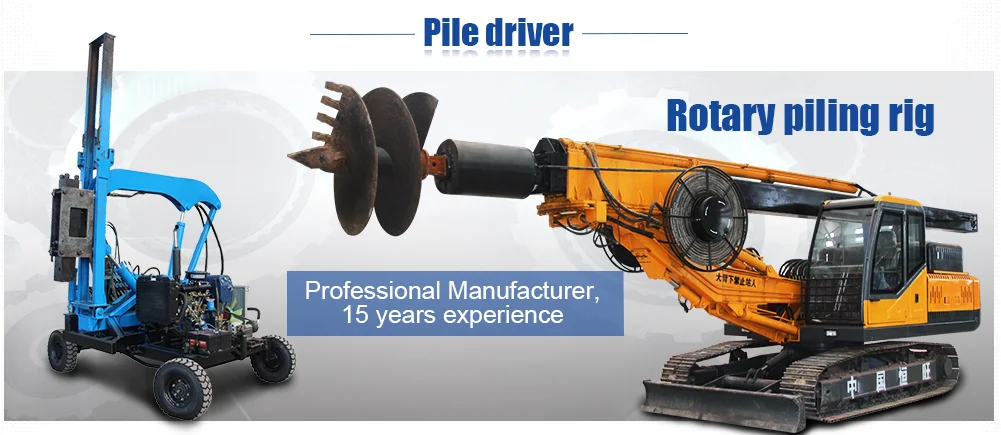

pile driver rotary drill rig
Port
Qingdao
Lead Time :
Within 5 days after receive payment
Video Description



 High truck type full hydraulic rotary pile rig/rotary drill rig for sale High truck type full hydraulic rotary pile rig/rotary dr






Product Application

Rotary drill rig have excellent design concept, reliable system, strong power

and self extendable undercarriage which insure operation in complicated jobsites.

Heavy hydraulic telescopic crawler is very stable and flexible, especially suitable for narrow jobsites.

rotary drill rig enjoy economic, efficient, environment friendly, stable performance and other features.

Name
Crawler Drilling Rig

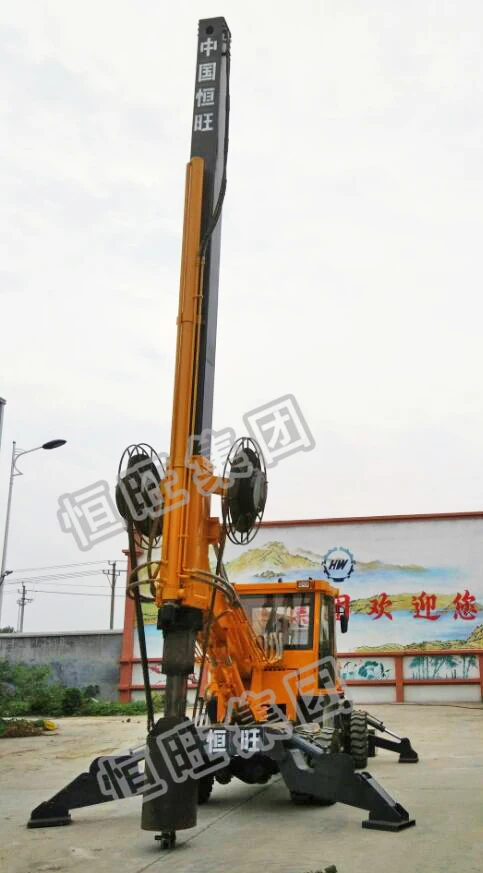

Wheel type drill rig
Size(mm)
8700×2300×3100
7700×2200×3000
Total Weight(kg)
13000
8500
Drill Depth(m)
1-23
1-20
Drill Diameter(mm)
480-1500
480-1400
Rotary Angle
360 degree
180 degree
Walking speed(km/h)
5-8
5-8
Hydraulic Systerm working pressure(mpa)
20-25
20-25
Hydraulic system displacement(ml/r)
50
80
Engine
Weichai 6105ZLY4
R4108ZY4/R6105ZY4
Engine Power(kw)
110
88/125
Gear pump model
CBGT 2050/50
CBJT2080










IMG_9231.jpg  IMG_9239.jpg



  IMG_9301.jpg         3.jpg
