self loading concrete mixer truck

  • 3 - 4 Pieces
    $15,800.00
  • >=5 Pieces
    $15,600.00
Discharging Capacity:
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Lead Time:
Quantity(Pieces) 1 - 3 4 - 5 >5
Est. Time(days) 5 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Charging Capacity:
1.2m3
Reclaiming capacity:
1.4m3
Mixing Power:
24kw/h
Condition:
New
Place of Origin:
China
Brand Name:
Hengwang
Outline Dimension:
6100*1850*3000mm
Speed of Mixing Drum:
0-4r/min
Motor Power:
55kw
Working Cycle Period:
15min
Water Supply Mode:
automatic timing water supply mechanism
Discharge Way:
Automatic
Applicable Industries:
Construction works , Energy & Mining
Product name:
Construction Equipment Concrete Mixer
Degree of bias:
16
Direction of rotation:
Feed:Clockwise output:counter clockwise
Max torque:
255/1500-1800N.m/r/min
Min steering radius:
5000mm
Climbing capacity:
26%
Tire:
23.5/70-16
Driving way:
4*4
Weight:
4580kg
Max load capacity:
2800kg
After-sales Service Provided:
Video technical support, Online support
Warranty:
12 month
Supply Ability
Supply Ability:
10 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1*20feet container can hold one piece self loading concrete mixer truck
Port
Qingdao/Tianjin/Shanghai
Lead Time :
Quantity(Pieces) 1 - 3 4 - 5 >5
Est. Time(days) 5 7 To be negotiated

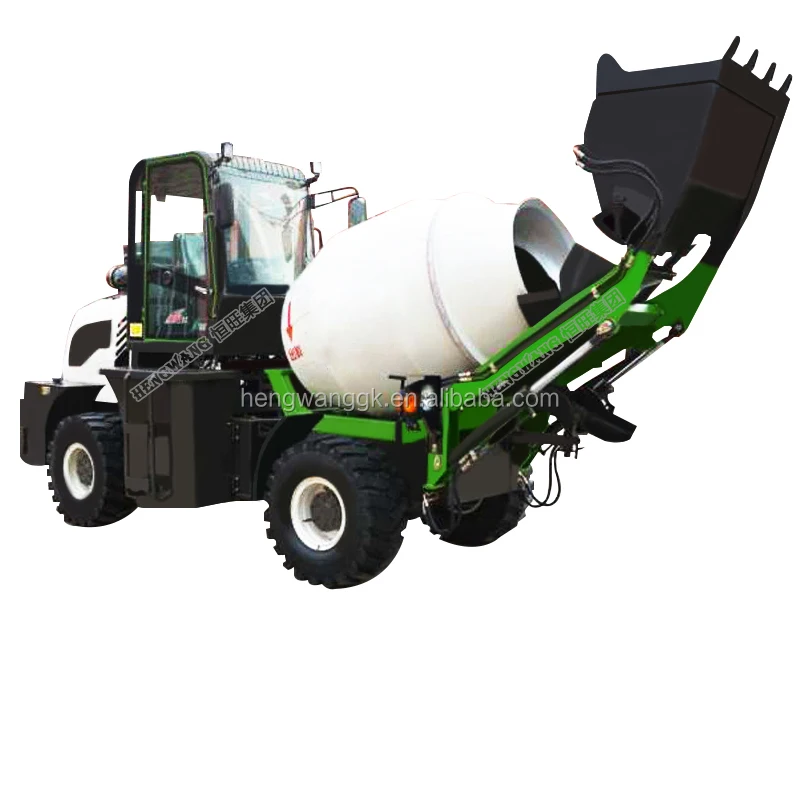

self loading concrete mixer truck

Product Description

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.


The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

professional audio mixer.jpg

Technical Parameters



Specifications

Unit

Parameter

Actual stirring capacity

m3

1.2

Rotary drum capacity

m3

1.4

Degree of bias

°

16

Rotational speed

r/min

 0-14

Direction of rotation



Feed:Clockwise output:counter clockwise

Mixing drum blade



Two sets of spiral blades and four sets of auxiliary blades

Slump of concrete

mm

70-260

Hydraulic Power Transmission System

Pump model



CBGV-4025

Hydraulic motor model



 BMSS-250

Reducer ratio



 1:10

Water Supply

Tank capacity/water supply form

L

540/automatic timing water supply mechanism with automatic timing

The Main Performance Parameters of the Chassis and the Main performance Parameters of the Engine

Engine type/displacement

L

 CF4B68G-Z-13B2/CF4C100T-Z-13B2

Model



Straight injection type four stroke water cooled supercharged diesel engine

Rated power

kw/r/min

 55KW/2400   78KW/2400

Max torque

N.m/r/min

 255/1500-1800    380/1500-1800

Max running speed

km/h

24

Min steering radius

mm

5000

Climbing capacity

%

26

Tire



 23.5/70-16

Driving way



4×4

Weight

kg

4580

Max load capacity

kg

2800

Whole machinery weight

kg

7380

Overall size(L*W*H)

mm

 6100*1850*3000



 Production Characteristic

1.Italy leading design,automatic feeding mixing systerm

2.Simple and convenient operation

3.High efficiency output,save time and labor,save cost

4.The perfect combination of mixing truck and loading car

concrete mixer.jpgmixer machine.jpg

concrete mixer machine.jpgmixer.jpg







Our Services

-_03

FAQ

MOQ,Payment,Loading port,price term,OEM

1.Payment : I:100% T/T

                   II:30% advaced and the balance paid before delivery

                   III:credit letter at sight

2.MOQ:1Pcs

3.Port of loading: Qingdao Port or others

4.Price term:FOB Qingdao price

5.OEM:we are pleased to be your OEM factory
