China Hengwang 2.4 m3 Small Truck Mounted Concrete Mixer Hydraulic Pump For Concrete Mixer Truck For Sale

  • 1 - 2 Sets
    $25,380.00
  • 3 - 4 Sets
    $24,615.00
  • >=5 Sets
    $24,305.00
Model Number:
HW-2400
Concrete Output:
2.4m3
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Engine Customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power(W):
YUNNEI 4102 76KW Turbo
Weight:
5550kg
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Certification:
ISO
Dimension(L*W*H):
6350*2510*2850mm
Product name:
Self-loading Concrete Mixer Truck
Engine:
YUNNEI 490 BOOST
Model:
HW2400
Application:
Construction Building
Color:
Customer's Request
Actual stirring capacity:
2.4m3
Mixing capacity:
2.3m3
Drum capacity:
2.3m3
Direction of rotation:
0-14r/min
Slump of concrete:
70-260mm
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
20'Container 40'Container
Port
Qingdao/Shanghai/Tianjin/Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description
Product Description

53007d7931975

inTRO

Bachelor Of Mechanical Design manufacture and Automation Major

Worked as a mechanical engineer to serve you better than other

Whatsapp/Wechat:+8613665378318

Hydraulic self-loading concrete mixer cement mixer machine, it can automatically feed, mix and discharge concrete mixture.HW series self loading concrete mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture.



Equipped with powerful China domestic diesel engine and 4 wheel drive, the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. (Customers can choose diesel engine)



The work blind zone is equipped with an image display system. The HW series mixer truck comes with a water tank and a suction pump. The tank is made of 375 manganese steel and is durable.



The the geometric volume of mixing drum is 1.2 m3~4m3,Concrete output is 1.0~4.0 m3 per batch. The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during construction operations.

Technology Parameter

para

Bachelor Of Mechanical Design manufacture and Automation Major

Worked as a mechanical engineer to serve you better than other

Whatsapp/Wechat:+8613665378318

SpecificationUnitParameter
Actual stirring capacitym32.4
Rotary drum capacitym32.3
Degree of bias °16
Rotational speedr/min10-20
Direction of rotation Feed:Clockwise Output:counter clockwise
Mixing drum blade Two sets ospiral blades and four sets of auxiliary baldes
Slump of concretemm70-260
Hydraulic power transmission system

Pump model



CBGV-4025

Hydraulic motor model



BMSS-160

Reducer ratio



1:10

Tank capacity/ water supply form L 540/ automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the main performance parameters of the engine

Engine type / displacement

 LCF4B68G-Z-13B2/CF4C100T-Z-13B2
ModelYUNNEI 4102 TurboStraight injection type four stroke water cooled supercharged diesel engine
Rated powerkw/r/min76KW/2400
Max torqueN.m/r/min255/1500-1800 380/1500-1800

Max running speed

km/h

24

Min steering radius

mm

4250

Climbing capacity

%

26

Tire



1670-20

Driving way



4×4

Weight

kg4880
Maximum load capacitykg3000
Whole machinery weightkg7680

Overall size(L*W*H)

mm6700*2300*2900

The wheelbase

mm2250

Bucket capacity

m30.55

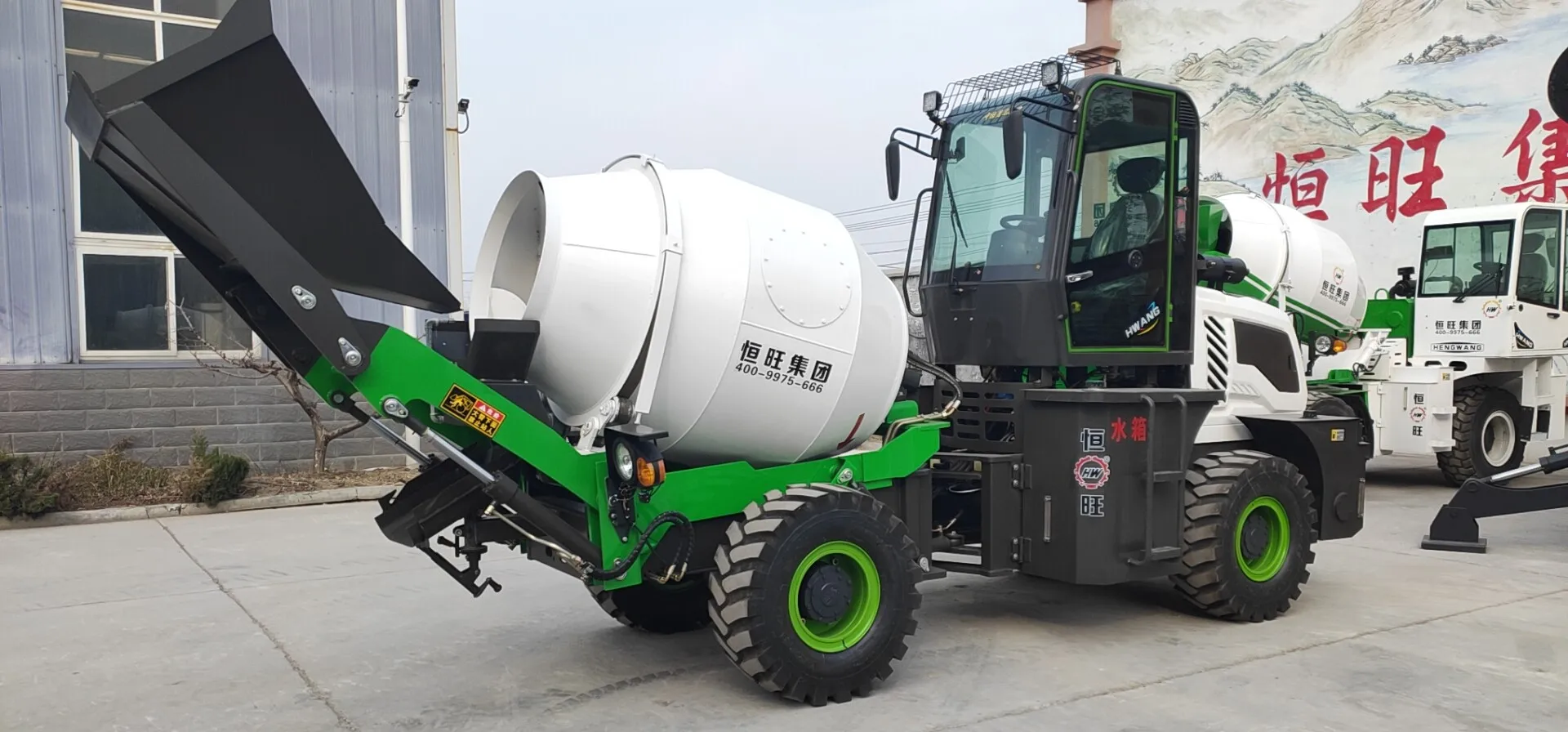

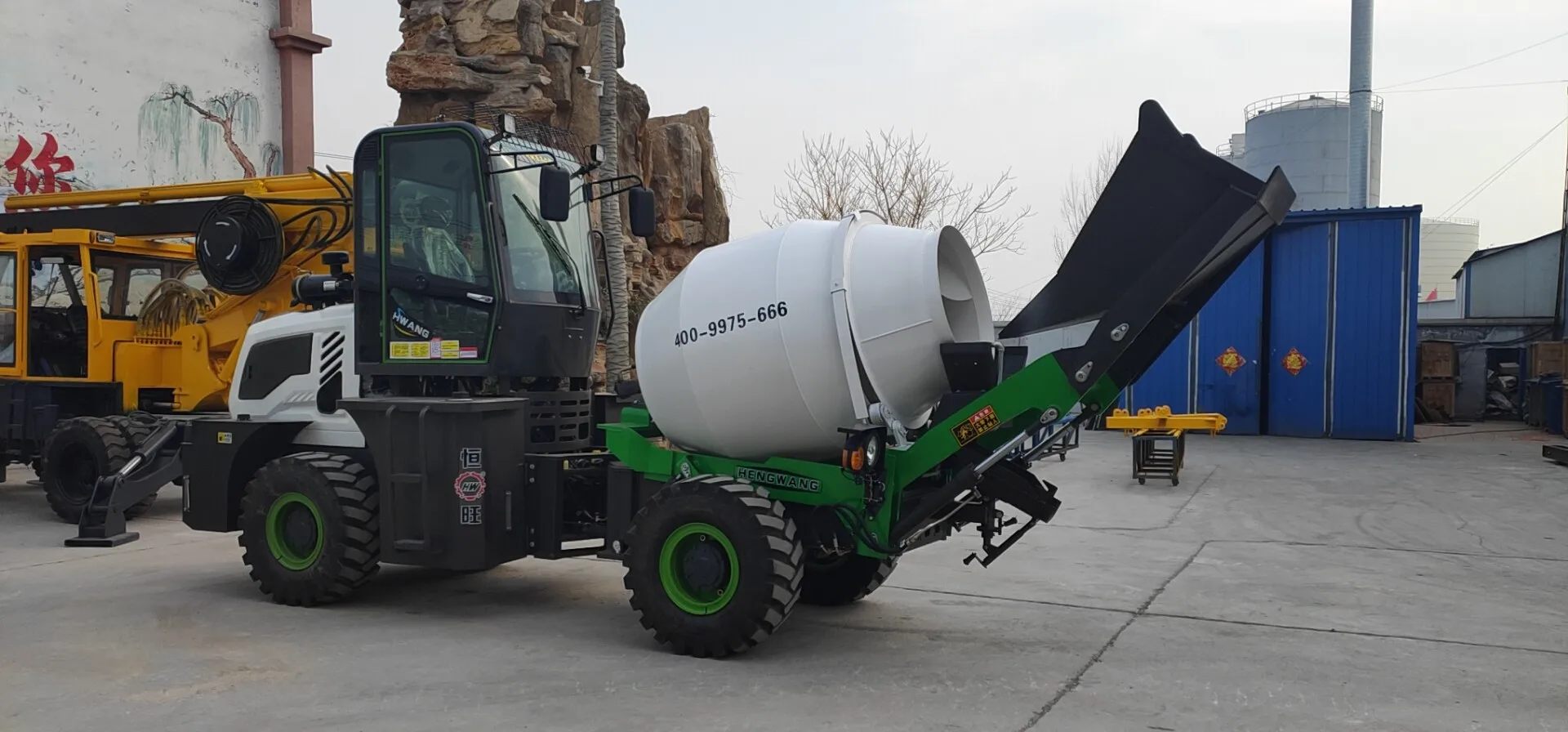

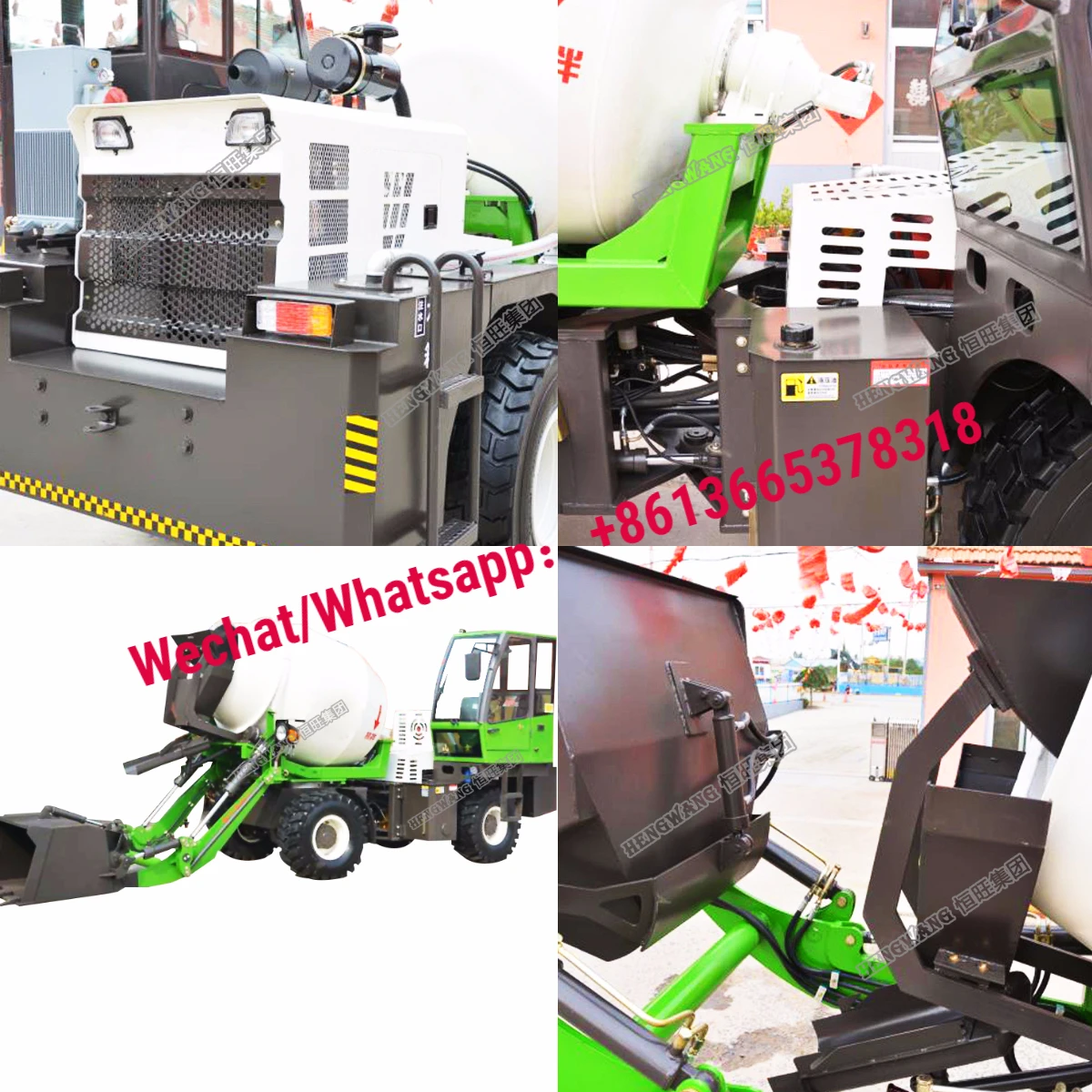

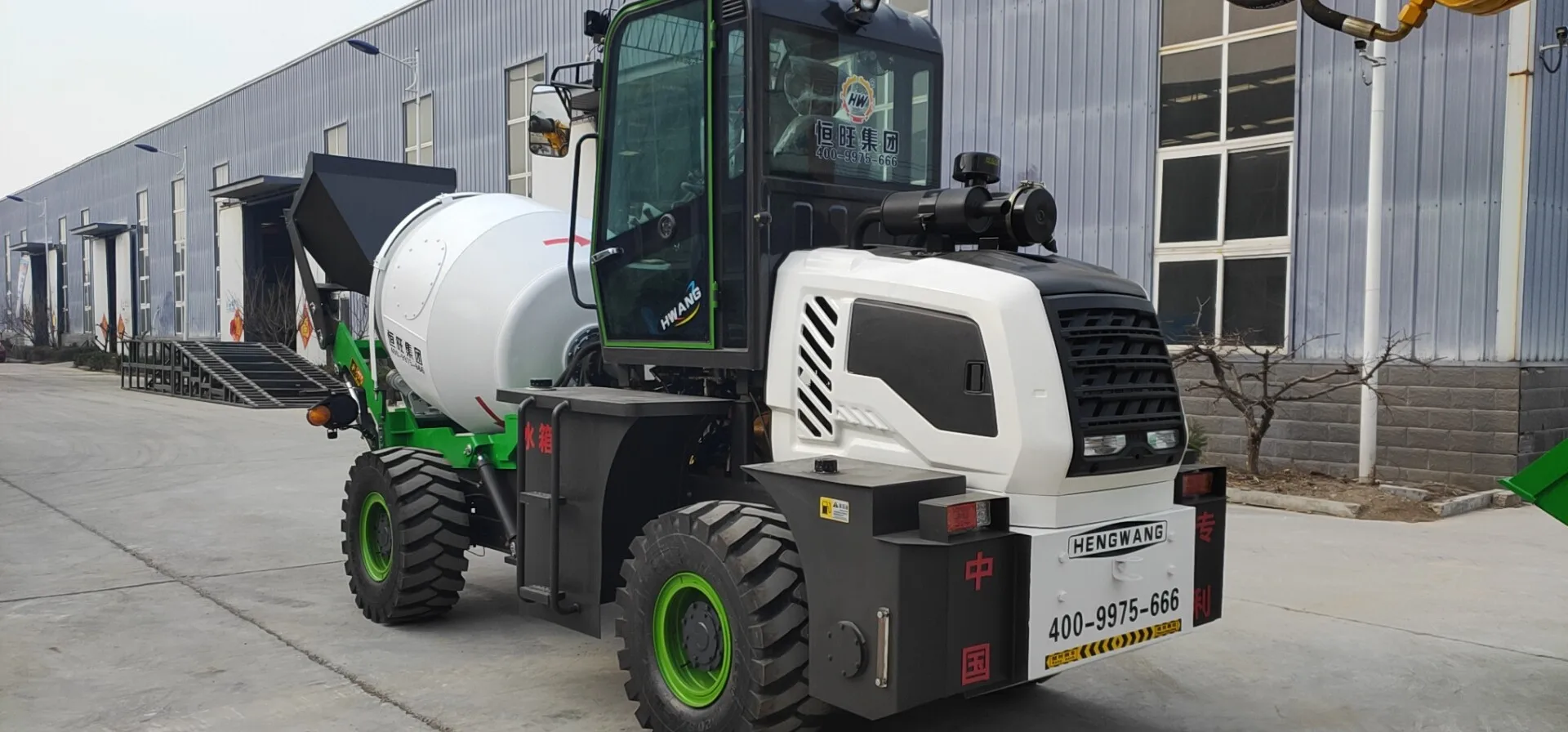

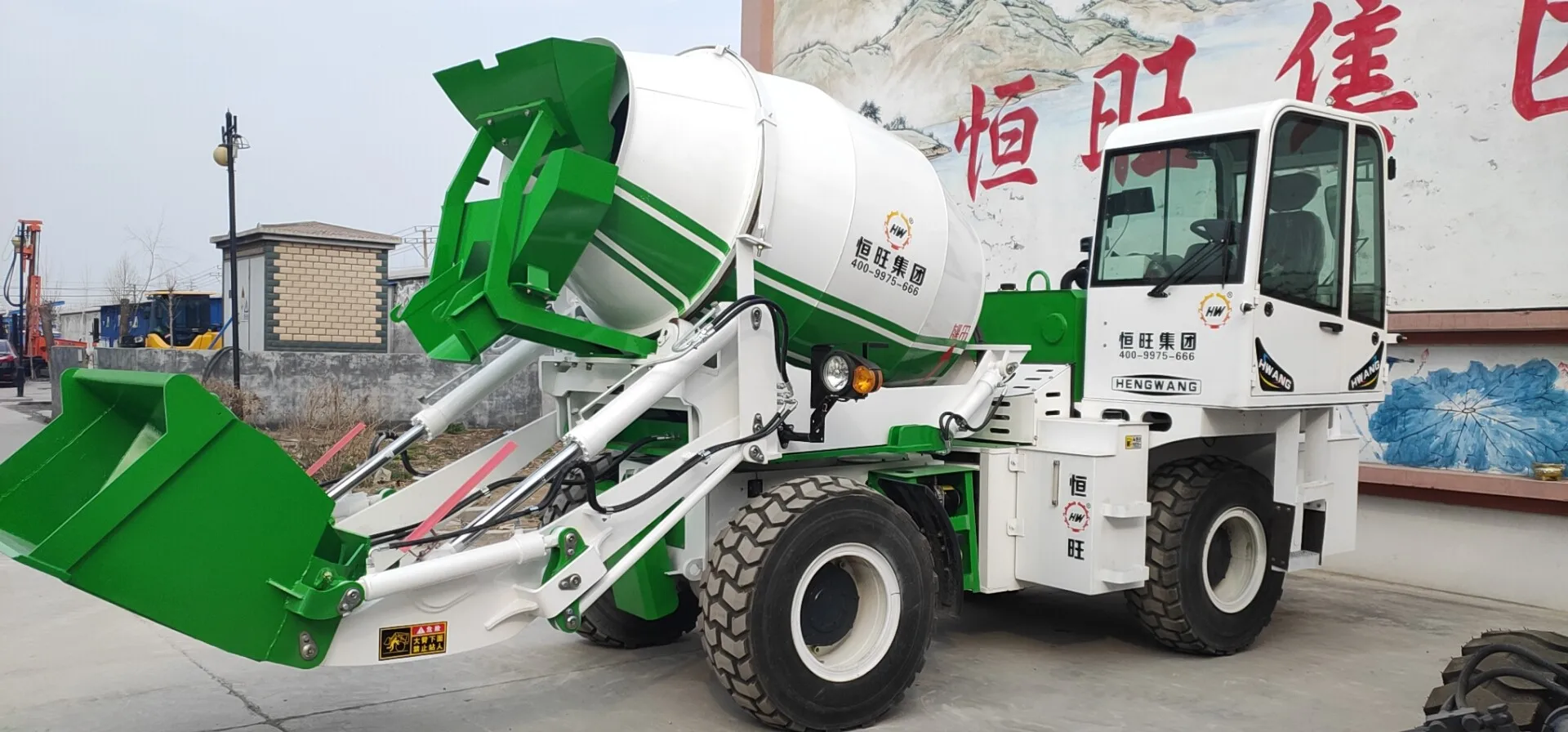

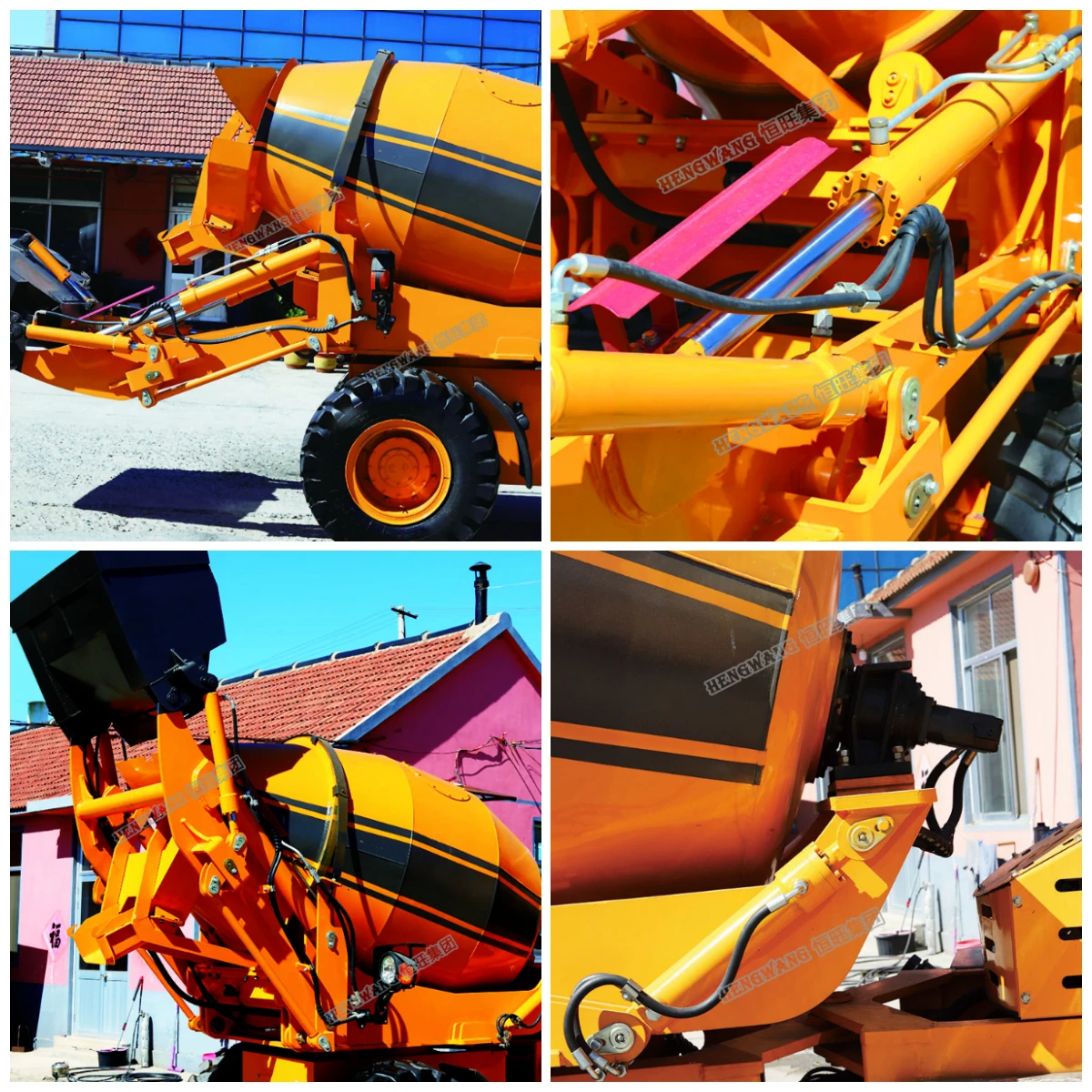

Product Real Photos

 FotoJet (1).jpgFotoJet (2).jpgFotoJet (2).jpgFotoJet (1).jpg (1).jpg (2).jpg (3).jpg.jpg

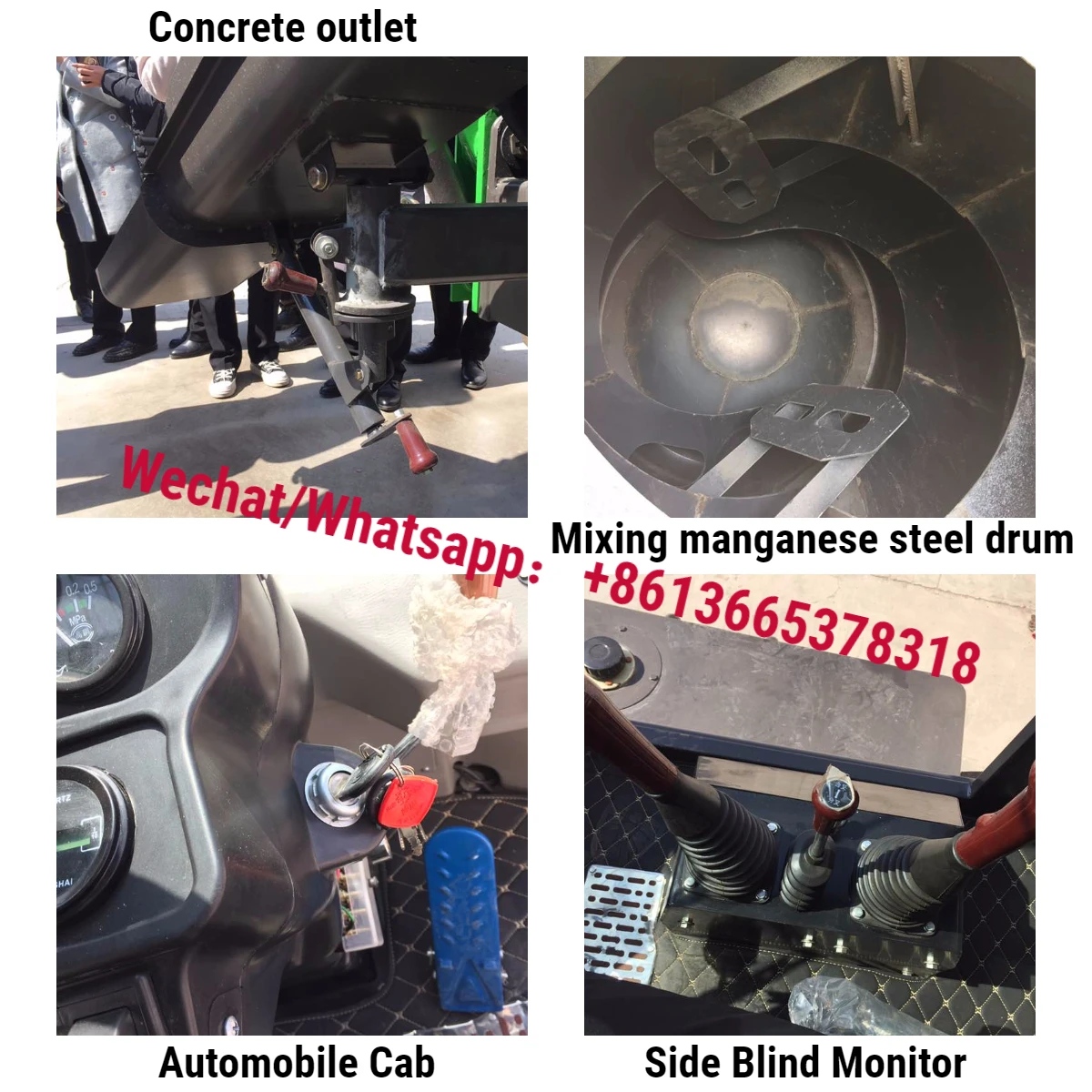

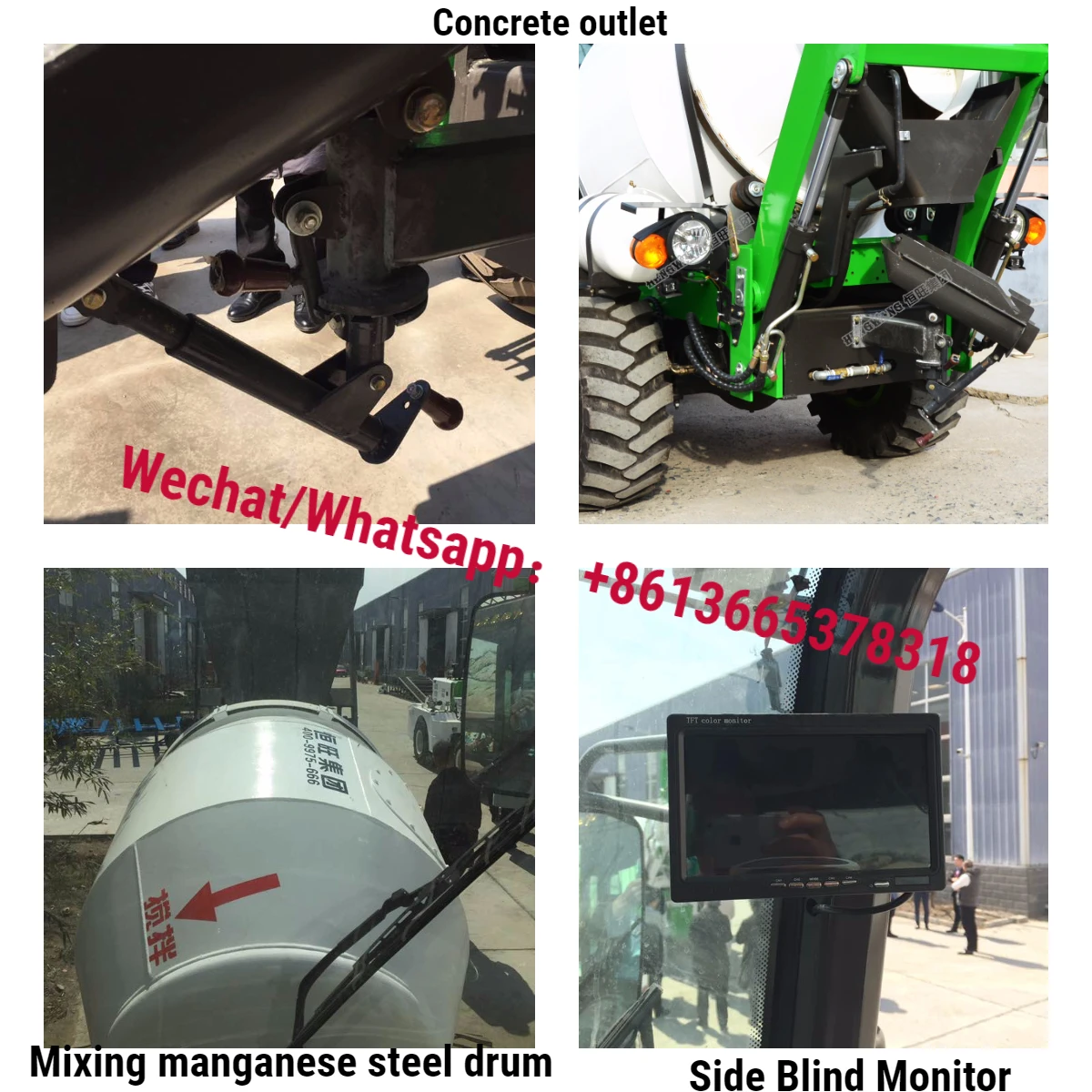

YUNNEI 4102 turbo engine (76KW), wheel-side reduction bridge, full hydraulic 280 torque converter, external water pump, full hydraulic transmission, 1670-20 steel wire tires, automatic water metering, equipped with Side Blind Monitor,180 degrees rotation.(optional seat rotation, air conditioning, car wash pump)

Contact me!!!!

Zak Zhang

Bachelor Of Mechanical Design manufacture and Automation Major

Worked as a mechanical engineer to serve you better than other


Mobile/Skype/WeChat/Whatsapp : +8613665378318
Email:hw014(at)hengwanggk.com
QQ:2853024691
Trade manager:cn1521875340izww

Jining Hengwang Mining Machinery Co.,Ltd
Hengwang Machinery is your best choice on Alibaba!

Factory

-_01-_02

Certifications

-_05

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



Contact us for more details about price,packing,shipping and diacount.
